Battery Transport Boxes

The potential hazards involved in the production, storage, and transportation of lithium-ion batteries are considerable. In the years ahead, the use of lithium-ion batteries, battery cells and battery modules will continue to increase dramatically in all industrial applications. The need for battery transport boxes will be crucial. During transport, it is important to be aware that damaged lithium-ion batteries must always be referenced as dangerous goods. Depending on the method of transport, the corresponding packaging standards are derived from the internationally applicable standards and provisions of the ADR, but also from the IATA-DGR, ICAO-TI, the IMDG as well as the RID in conjunction with UN3090, UN3091, UN3480 and UN3481.



Chemstore is now offering a premium line of battery transport boxes. Packing group 1 is an ideal solution for damaged, defective and unsafely transportable lithium-ion batteries up to 400 kg.

Packing group 2 provides a safety system for storage and transport in accordance with ADR SP376, P908 for defective lithium-ion batteries



Confused about what battery transport box you need? Contact Chemstore for professional advice from the experts.

Packing Group I (Transport Metal Box)

Product card for S-Box X1

S-Box X1

Outer Dimensions:
799(L) x 599(W) x 734(H) mm
Max Battery:
436(L) x 236(W) x 180(H) mm
Volume:
187 L

Product card for S-Box X2

S-Box X2

Outer Dimensions:
799(L) x 599(W) x 1114(H) mm
Max Battery:
436(L) x 236(W) x 560(H) mm
Volume:
309 L

Product card for M-Box X1

M-Box X1

Outer Dimensions:
1199(L) x 799(W) x 792(H) mm
Max Battery:
776(L) x 376(W) x 240(H) mm
Volume:
466 L

Product card for M-Box X2

M-Box X2

Outer Dimensions:
1199(L) x 799(W) x 1252(H) mm
Max Battery:
776(L) x 376(W) x 700(H) mm
Volume:
800 L

Product card for XXL-Box

XXL-Box

Outer Dimensions:
2500(L) x 1484(W) x 1029(H) mm
Max Battery:
1976(L) x 956(W) x 400(H) mm
Volume:
2603 L

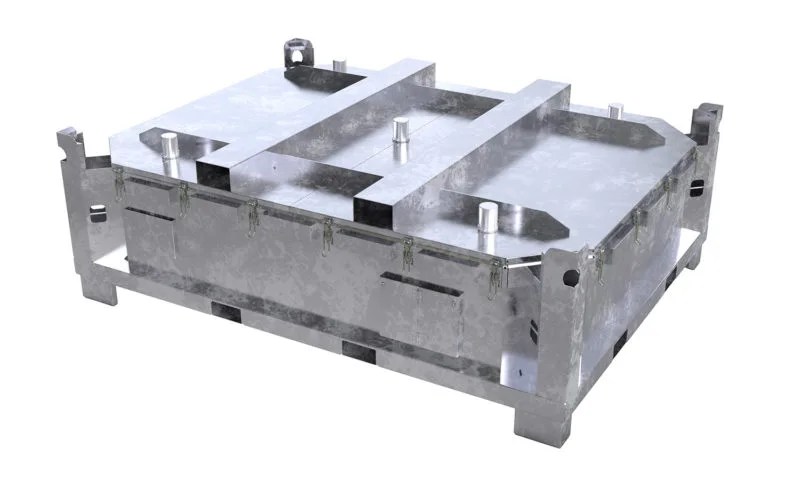

Product card for LP-Box2

LP-Box2

Outer Dimensions:
3175(L) x 2400(W) x 1349(H) mm
Max Battery:
2270(L) x 1500(W) x 190(H) mm
Volume:
2993 L

Product card for S-Box X1 (Galvanised)

S-Box X1 (Galvanised)

Outer Dimensions:
799(L) x 599(W) x 734(H) mm
Max Battery:
436(L) x 236(W) x 180(H) mm
Volume:
187 L

Product card for M-Box X1 (Galvanised)

M-Box X1 (Galvanised)

Outer Dimensions:
1199(L) x 799(W) x 792(H) mm
Max Battery:
776(L) x 376(W) x 240(H) mm
Volume:
466 L

Product card for XXL-Box (Galvanised)

XXL-Box (Galvanised)

Outer Dimensions:
2500(L) x 1484(W) x 1029(H) mm
Max Battery:
1976(L) x 956(W) x 400(H) mm
Volume:
2603 L

Product card for LP-Box2 (Galvanised)

LP-Box2 (Galvanised)

Outer Dimensions:
3175(L) x 2400(W) x 1349(H) mm
Max Battery:
2270(L) x 1500(W) x 190(H) mm
Volume:
2993 L

Packing Group II (Transport Poly Box)

Product card for XS-Box 1 Basic

XS-Box 1 Basic

Outer Dimensions:
400(L) x 300(W) x 235(H) mm
Max Battery:
280(L) x 180(W) x 95(H) mm
Volume:
18 L

Product card for XS-Box 1 Premium

XS-Box 1 Premium

Outer Dimensions:
400(L) x 300(W) x 235(H) mm
Max Battery:
278(L) x 171(W) x 55(H) mm
Volume:
7 L

Product card for XS-Box 2 Basic

XS-Box 2 Basic

Outer Dimensions:
400(L) x 300(W) x 285(H) mm
Max Battery:
280(L) x 180(W) x 145(H) mm
Volume:
23 L

Product card for S-Box 1 Basic

S-Box 1 Basic

Outer Dimensions:
600(L) x 400(W) x 295(H) mm
Max Battery:
436(L) x 236(W) x 136(H) mm
Volume:
56 L

Product card for S-Box 1 Premium

S-Box 1 Premium

Outer Dimensions:
600(L) x 400(W) x 295(H) mm
Max Battery:
452(L) x 252(W) x 96(H) mm
Volume:
28 L

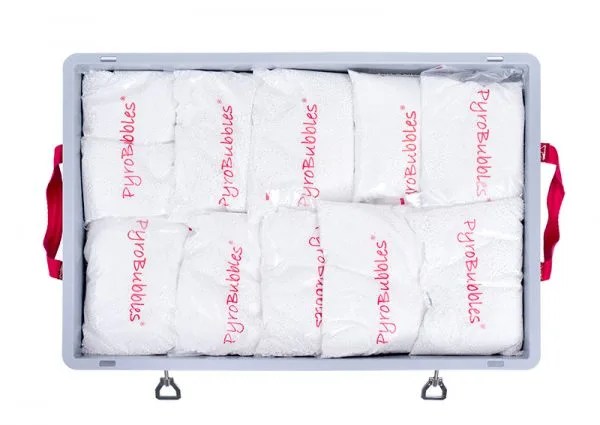

Product card for S-Box 2 Basic

S-Box 2 Basic

Outer Dimensions:
600(L) x 400(W) x 441(H) mm
Max Battery:
438(L) x 236(W) x 282(H) mm
Volume:
84 L

Product card for S-Box 2 Premium

S-Box 2 Premium

Outer Dimensions:
600(L) x 400(W) x 441(H) mm
Max Battery:
452(L) x 252(W) x 241(H) mm
Volume:
49 L

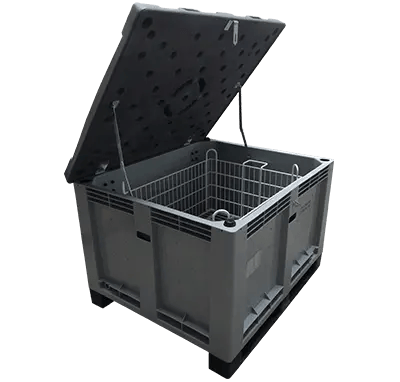

Product card for M-Box Advanced

M-Box Advanced

Outer Dimensions:
1230(L) x 1030(W) x 835(H) mm
Max Battery:
846(L) x 646(W) x 244(H) mm
Volume:
299 L

Product card for M-Box Premium

M-Box Premium

Outer Dimensions:
1230(L) x 1030(W) x 835(H) mm
Max Battery:
901(L) x 708(W) x 260(H) mm
Volume:
309 L
